American Saw Mill Machinery / Monarch 1944 Unipoint Radial Arm Saw - $3,995 (Sheboygan)
1133 S 7TH ST near Kentucky
QR Code Link to This Post

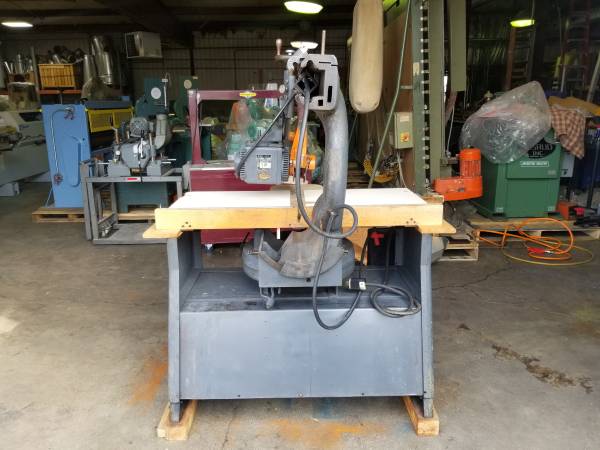

Approx. 1944 Monarch Unipoint Radial Arm Saw with I believe additional US government tagging.
The original designers and manufacturer of the Unipoint Radial Arm Saw that Northfield bought the rights to and still makes today.
Cleaned, Checked, Lubed, Video Made
Motor Horsepower 5hp
Saw Diameter 16"
Saw Bore 1"
"Dado* Largest Width on Standard Mandrel 1-9/16"
"Dado* Largest Width on 1-3/8" Elongated Mandrel 3"
Maximum Depth of Cut (16" Saw) 4-1/2"
Cross Cut Capacity-Guide Fence Regular Position 17-1/2
Cross Cut Capacity-Guide Fence Rear Position 25
Ripping Capacity-Between Saw and Regular Guide Fence 23-1/2"
Ripping Capacity-with Guide Fence Moved to Rear 31"
Maximum 45 degree Miter:
Guide Fence Regular Position 4" x 12-1/2"
Moved to Rear 4" x 14-1/2"
Maximum 70 degree Miter:
Guide Fence Regular Position 4" x 6"
Moved to Rear 4" x 8-1/2"
Maximum Compound 45 degree Miter 3" x 12-1/2"
Motor Raises to Center of Arbor to Table Top, Max 10"
Motor Lowers, Center of Arbor to Table Top, Min 3-5/8"
Size of Table 25" x 48"
Height of Table 32"
Angle Capacity:
Saw Tilts to Left 45 degrees
Saw Pivot to Right 70 degrees
Saw Pivot to Left 45 degrees
Floor Space, Overall 48" x 60"
Net Weight 800 lbs
