Thermaltake Core X9 computer case (large) - $125 (Germantown)
QR Code Link to This Post

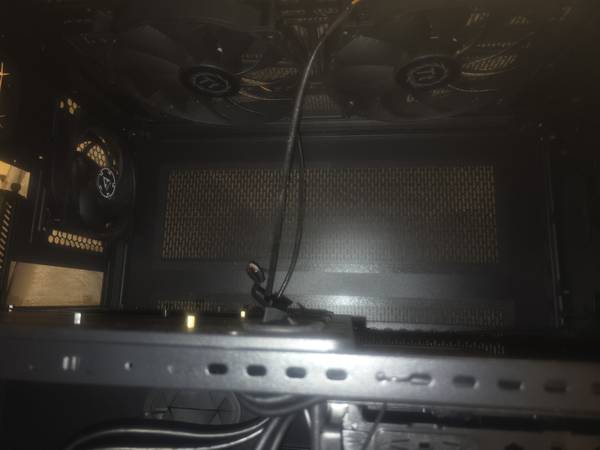

In addition to the standard 200mm front fan and 120mm exhaust fan, this has two 200mm top exhaust fans and an additional 120mm rear exhaust fan added.
Designed for high-end gaming system compatibility, the Core X9's modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA of up to 590mm in length, and a tower CPU cooler as high as 250mm. Even with a high-wattage PSU stretching to 200mm in length, it still leaves plenty of space for cable management. Moreover, two 480mm radiators can be installed on top of the chassis, delivering superior cooling performance.
Optimized for space management, the Core X9 is divided into two main chambers: the upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.
Model: Core X9
CASE TYPE E-ATX Cube Case
Dimension (H x W x D) 502 x 380 x 640 mm (19.8 x 15 x 25.2 inch)
NET WEIGHT 17 kg / 37.5 lb

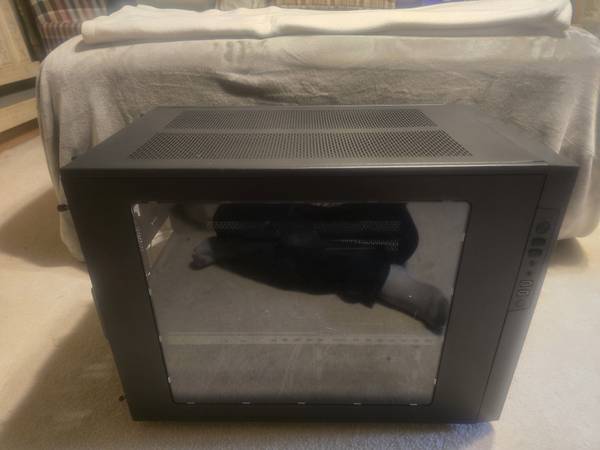

PANEL Transparent Window
Color Exterior & Interior : Black
COOLING SYSTEM
Front (intake) : 200 x 200 x 30 mm fan (800rpm, 13dBA)
Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays-Accessible 3 x 5.25’’
-Accessible : 6 x 3.5’’ or 2.5’’ (HDD Cage)
-Hidden : 1 x 3.5’’, 2 x 2.5’’ (M/B Tray)
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
LCS Upgradable
Supports 1/2”、3/8”、1/4” water tube
I/O Port USB 3.0 x 4, HD Audio x 1
PSU, Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm
2 x 140mm
2 x 200mm
Top:
8 x 120mm
6 x 140mm
2 x 200mm
Rear:
2 x 120mm or 2 x 140mm
Bottom:
3 x 120mm
Left / Right Side:
4 x 120mm
3 x 140mm
RADIATOR SUPPORT
Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm
2 x 140mm or 2 x 280mm or 2 x 420mm
Rear:
1 x 120mm or or 1 x 140mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Bottom:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
CLEARANCE
CPU cooler height limitation: 250mm
VGA length limitation:
400mm(with ODD cage)
590mm(without ODD cage)
PSU length limitation:
220mm (With Bottom Fan)
