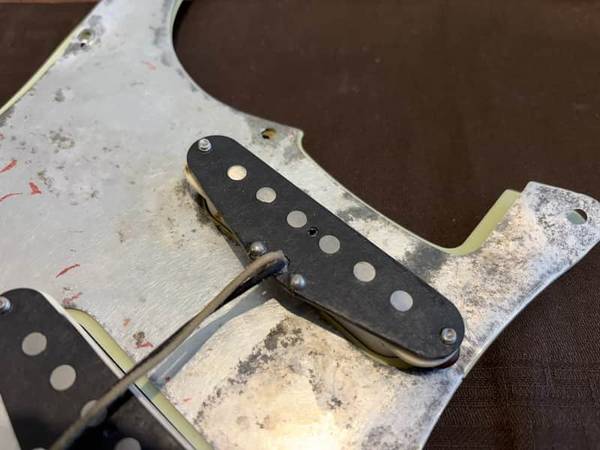

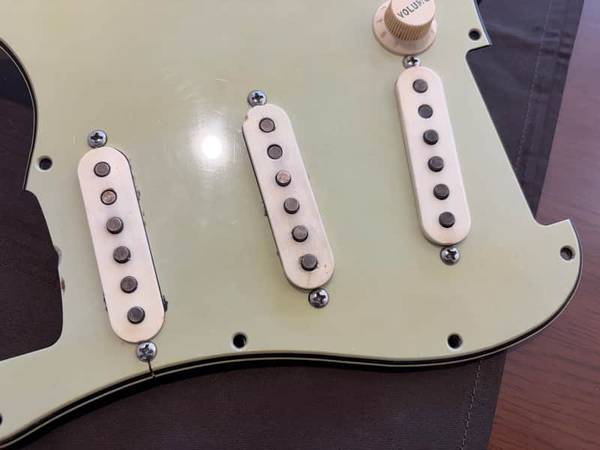

1959 Fender Strat Complete Pickguard Assembly - $7,550 (milwaukee)
QR Code Link to This Post
All components looks original.
Includes a matched set of original pickups with consistent DCR readings, along with original Stackpole 1959 potentiometers measuring in 280k range as usual.
Ideal for vintage restoration or high-end builds seeking authentic pre-CBS Strat tone.
Pickup DCR - Neck : 6.11K / Middle : 6.28K / Bridge : 6.35K
Pot. DCR - Vol : 286K ohms / Tone 1 : 280K ohms / Tone 2 : 283K ohms
Manufacturer : Stackpole / Code : 304-5934
Scratch Noise Check : Good
Capacitor : Original Cornell - Dubilier ZNW1P1 0.1uF 150VDC (Actual capacitance : Approx. 0.22uF)
(There is a PIO-specific increase in capacity, which is diagnosed as normal.)
Switch : CRL 3 POS / Code : CRL1452
Wires - judge original based on the shape of the inner wire & the shape of the sheath.
Pickguard Shied Plate : Original (Red Stamped)
Worldwide shipping available.
Will be shipped via FedEx, fully insured and signature required.
All items are sold as-described due to the vintage nature of the piece.
