200 channel pro 2021 Uhf am-fm direct entry programmable scanner - $75 (muskego)
QR Code Link to This Post

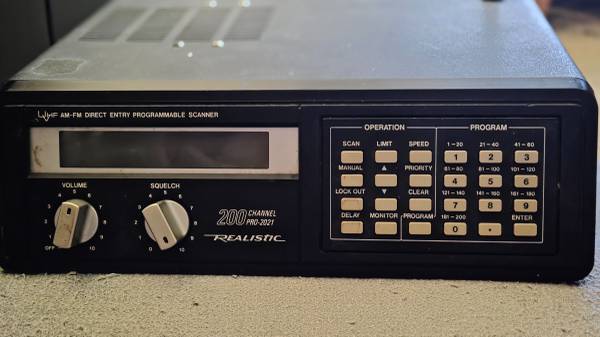

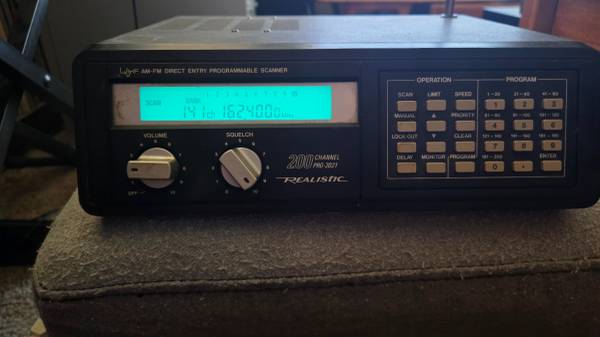

Realistic Pro-2021 (20-113)
A picture of Realistic Pro-2021 (20-113)
SPECIFICATIONS
GENERAL
Type: VHF/UHF receiver/scanner
Frequency range: 30-54 / 108-136 / 138-174 / 380-512 MHz (USA)
Tuning steps: 5 / 12.5 / 25 KHz (Depending on band)
Frequency stability: ? ppm
Mode: AM / FM
Channels / memory management: 200 regular in 10 banks @ 4 or 8 channels per second
10 monitor
1 search edge pair
1 priority
RAM storage with 9 V battery backup
Power supply: Mains: 120 VAC
or 13.8 VDC
Current drain / power consumption: Max 15 W @ mains
Max 580 mA @ 13.8 VDC
Antenna impedance / connector: 50-75 ohm / DIN41585 (Motorola) or internal telescopic whip
Dimensions (W*H*D): 260*80*200 mm (10.24*3.15*7.87")
Weight: 2 Kg (4.4 lb)
Other features: Tape out jack.
RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity: VHF Lo: 0.5 uV (20 dB S/N)
VHF Air: 2 uV (20 dB S/N)
VHF Hi: 1 uV (20 dB S/N)
UHF: 1 uV (20 dB S/N)
Selectivity: 18 KHz (-6 dB)
30 KHz (-50 dB)
Image rejection: 60 dB @ 154 MHz
AF output power / speaker: 1.5 W at 10% distortion / ? ohm
External speaker connector: 3.5 mm
MISCELLANEOUS
Manufactured: Japan (By GRE), 1987-198x (Discontinued)
Additional info: New price 1987 in the US: $299.95
New price 1988 in the US: $329.95
Related documents: User manual (4.8 MB)
Service manual (1.8 MB)
If you’d like to try it out here in Muskego as I will not ship. Cash only with a 30 day warranty. If it's posted it's still available. Thanks for looking. Tom
